CONNECTORS
INTERNAL | EXTERNAL

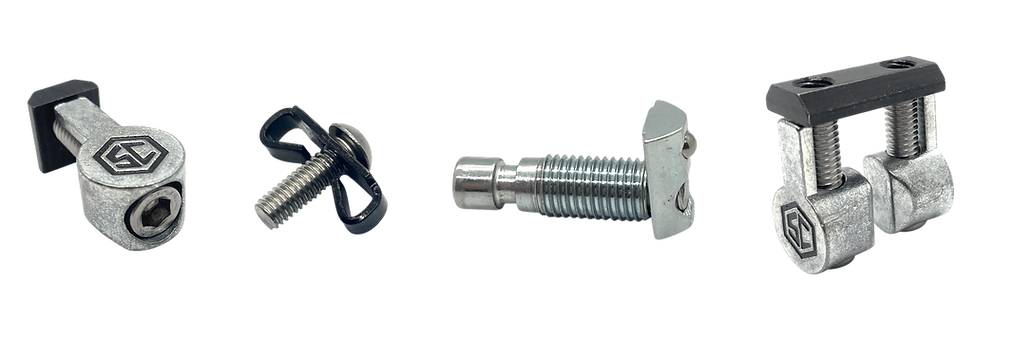

Anchor, end fastener and automatic connectors are high-strength, internal fasteners for joining T-slotted profiles without external brackets. Anchor fasteners create a strong, flush 90-degree connection but require pre-machining (a hole in one profile). Automatic connectors simplify assembly as they can be placed anywhere in the slot without machining, using a rotating T-nut for secure locking.
10 SERIES CONNECTORS
15 SERIES CONNECTORS
40 SERIES CONNECTORS
Key Features and Types
-
Anchor Fasteners: Three-piece system (anchor, screw, T-nut) for strong, concealed, perpendicular joints.
-
Automatic Connectors: Designed for easy, quick, no-machining installation and repositioning.
-
End Fasteners: Join one profile's end to another's face, requiring a tapped hole.
Installation
-
Anchor Fastener: Insert assembly into the pre-machined hole, slide the second profile over, and tighten.
-
Automatic Connector: Insert into the slot, tighten the internal screw (Torx) to rotate and lock the T-nut onto the connecting profile.
Advantages
-
Hidden Strength: Creates rigid, concealed 90-degree joints.
-
Modular: Allows easy structure assembly and reconfiguration.
-
Clean Design: Leaves outer slots free for attachments.
