End Fasteners Assemblies are an economical way to make 90° connection between two extrusions. Moderate strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

Assembly includes

(1) End Fastener Clip
(1) 5/16-18 x 1” Button Head Socket Cap Screw - Stainless Steel

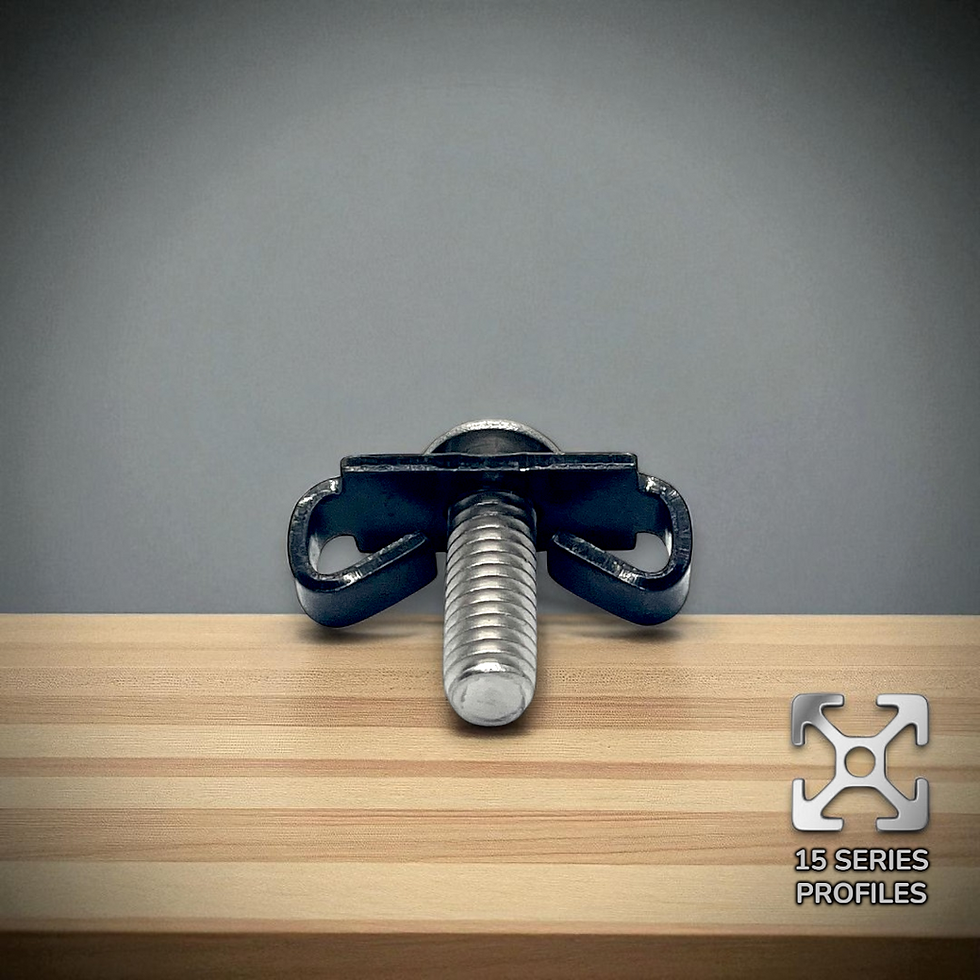

End Fastener

Name: End Fastener
SKU: 1217-A

SKU: 1217-A

$0.95

Excluding Sales Tax

Quantity

SKU 1217-A

Type Assembly

Material Steel / Stainless Steel

Color Black

A .625"

B .450"

C .300"

D .340"

E 1.300"

F 1.000"

G 5/16-18 Stainless Steel

H 1.000"
Please read and review our Shipping & Returns Policy available at the following link: Shipping & Returns Policy
